Concrete Feed & Water Troughs

At Low Grange Quarry Ltd, we manufacture a range of robust, fibre-reinforced concrete feed and water troughs, ideal for agricultural environments where strength, stability, and long service life are essential. Our troughs are designed for livestock safety and farmer convenience.

To find out more about this product? Click here to get in touch

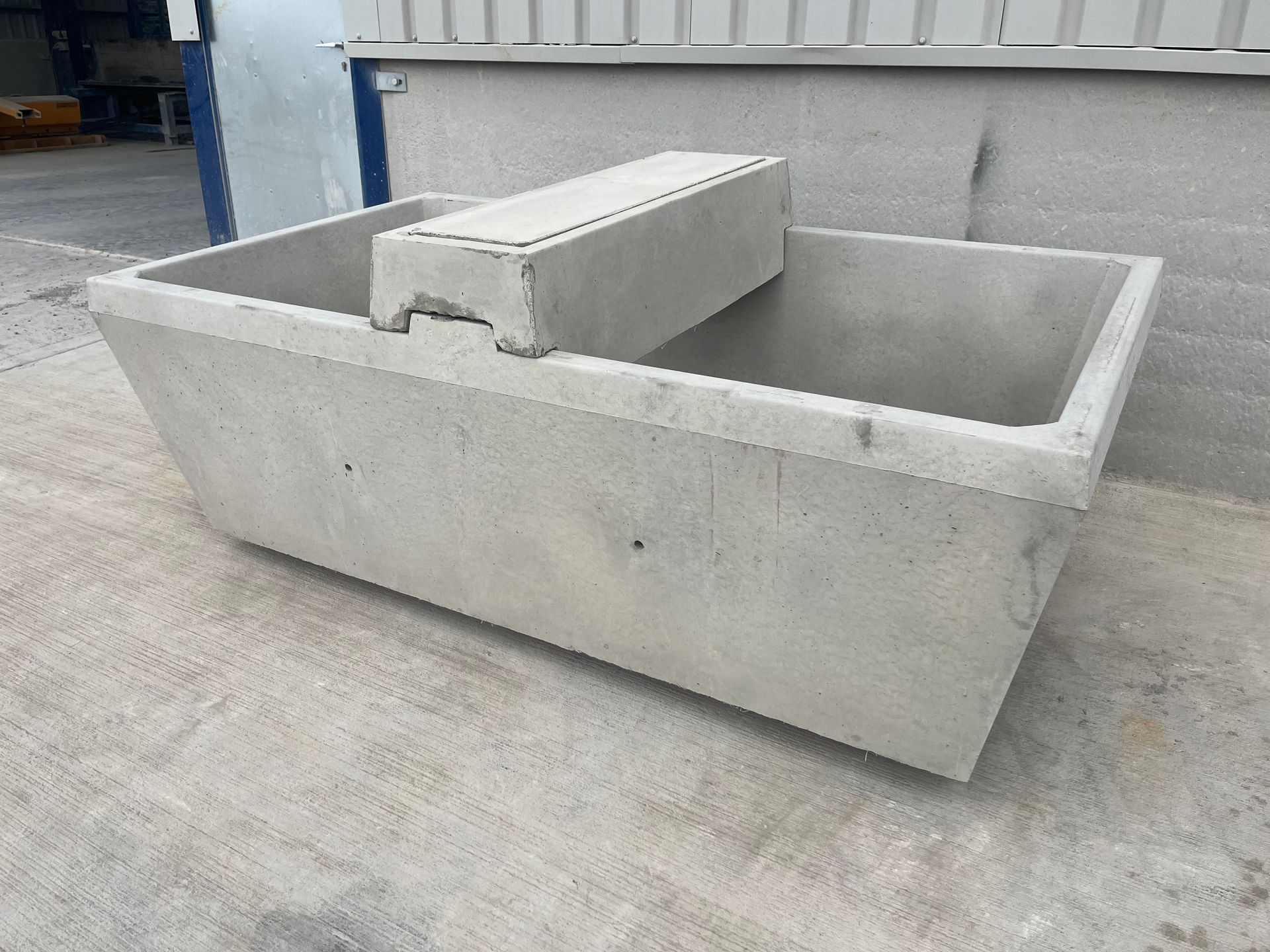

A gray, rectangular concrete livestock water trough sitting outdoors on a paved surface.

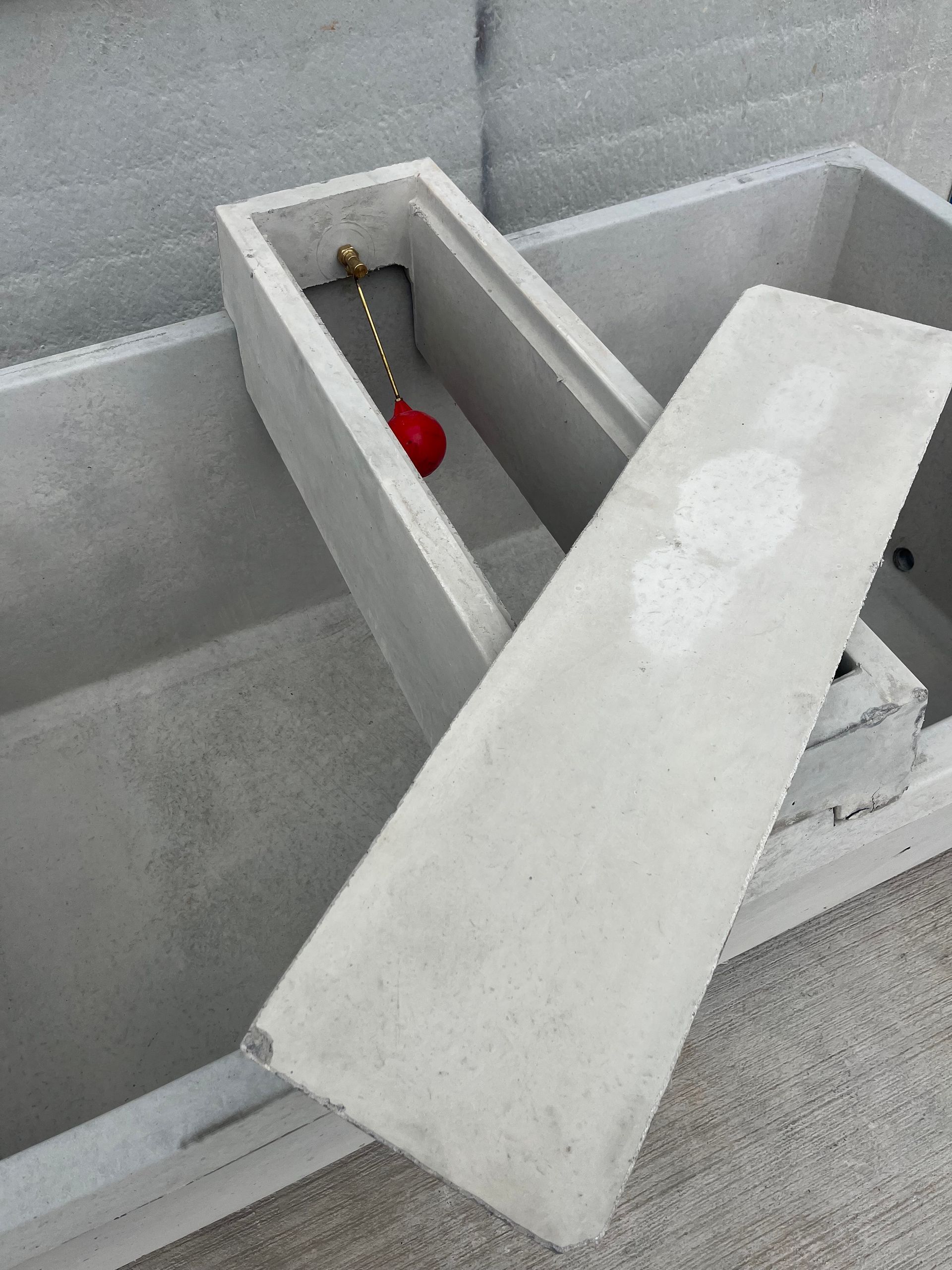

A concrete livestock trough with a detached lid and a red float valve assembly installed in the end compartment.

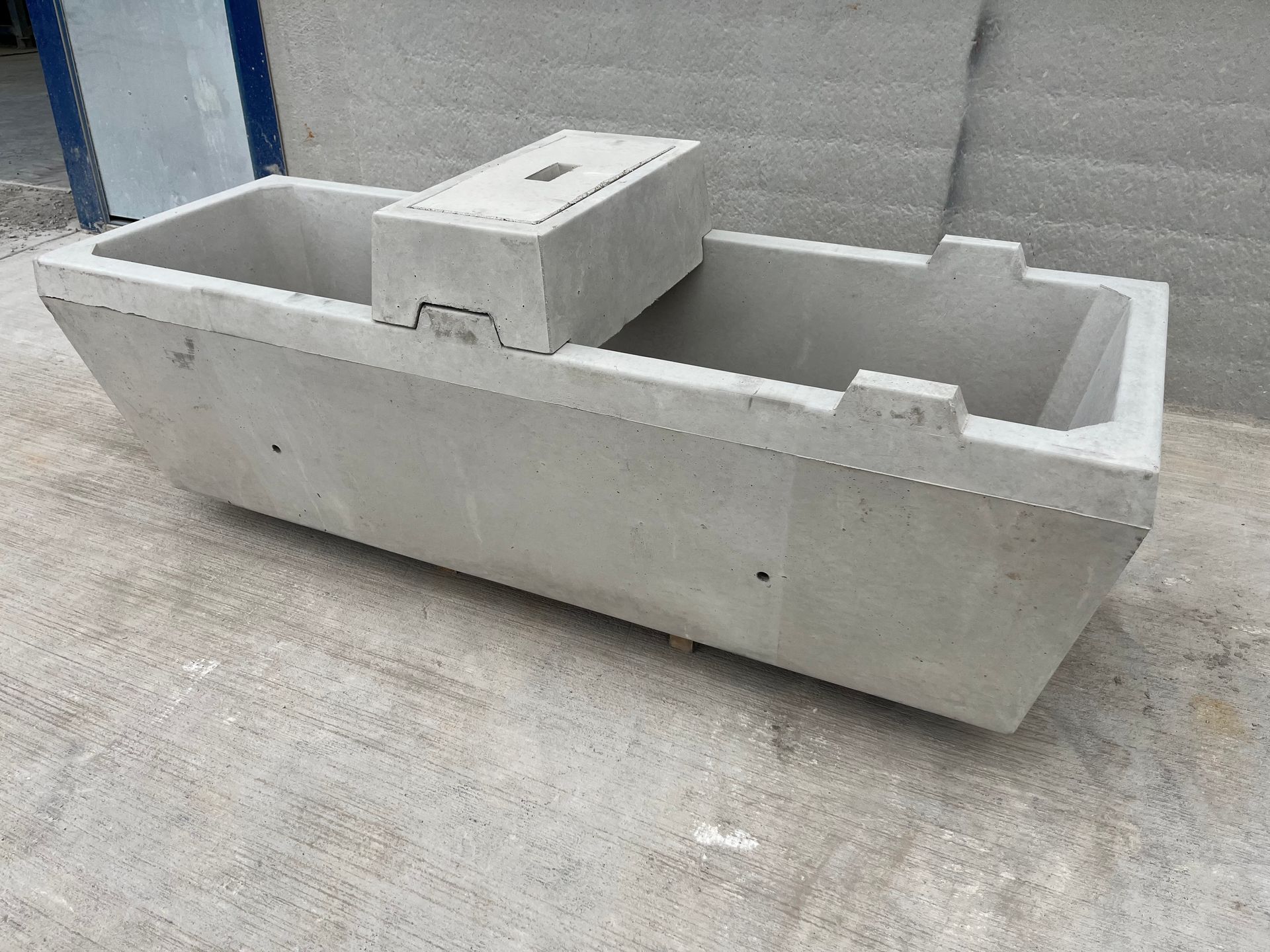

A rectangular concrete trough or livestock waterer with a central access cover, sitting on a concrete surface.

A grey concrete cattle water trough with a covered utility section, resting on a concrete floor.

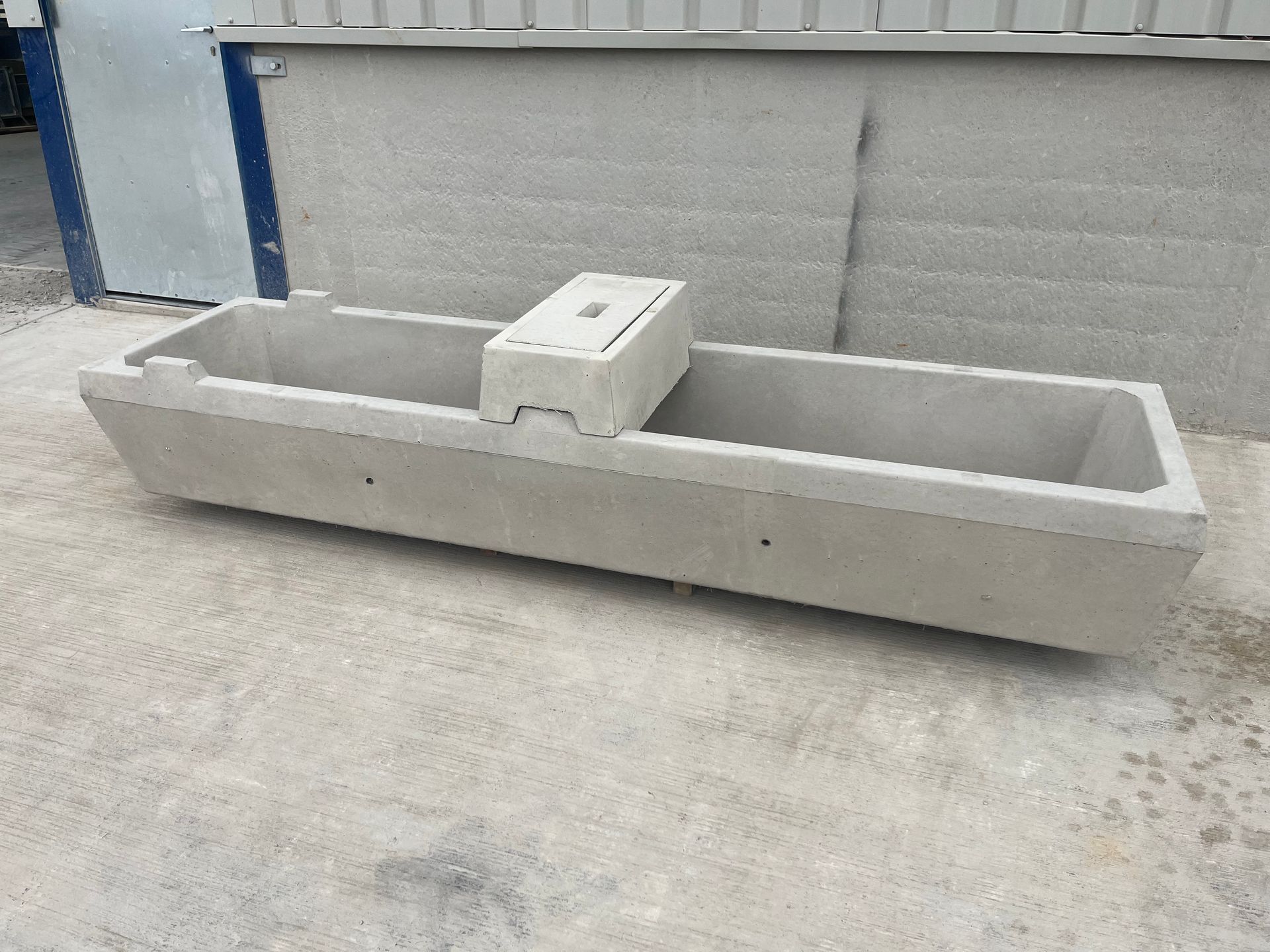

A long, grey concrete livestock watering trough with a central service compartment, sitting on a concrete surface.

Water Troughs

Reliable hydration for livestock in all conditions.

Made from C60-grade concrete reinforced with fibre mesh (equivalent to two layers of A252 steel mesh), our water troughs are built to withstand harsh farm use. Each trough is supplied ready to use with a ballcock valve, float, and drainage bung—simply position and connect to your water supply.

Concrete construction means they’re heavy enough to resist tipping or movement by livestock, reducing the risk of damage and maintaining consistent water access.

Available Sizes:

20 Gallon (90L)
200kg empty | 290kg full
1.53m (5') L × 0.525m (1' 8½") W × 0.26m (10") H

50 Gallon (227L)
400kg empty | 627kg full
1.375m (4' 6") L × 0.7m (2' 3½") W × 0.41m (1' 4") H
Central or end-mounted service box options available

100 Gallon (454L)
800kg empty | 1254kg full
Available in:
Tall: 2.06m (6' 9") L × 0.7m (2' 3½") W × 0.61m (2') H
Shallow: 2.75m (9') L × 0.7m (2' 3½") W × 0.41m (1' 4") H

300 Gallon (1364L)
1250kg empty | 2614kg full
2.29m (7' 6") L × 1.27m (4' 2") W × 0.75m (2' 6") H

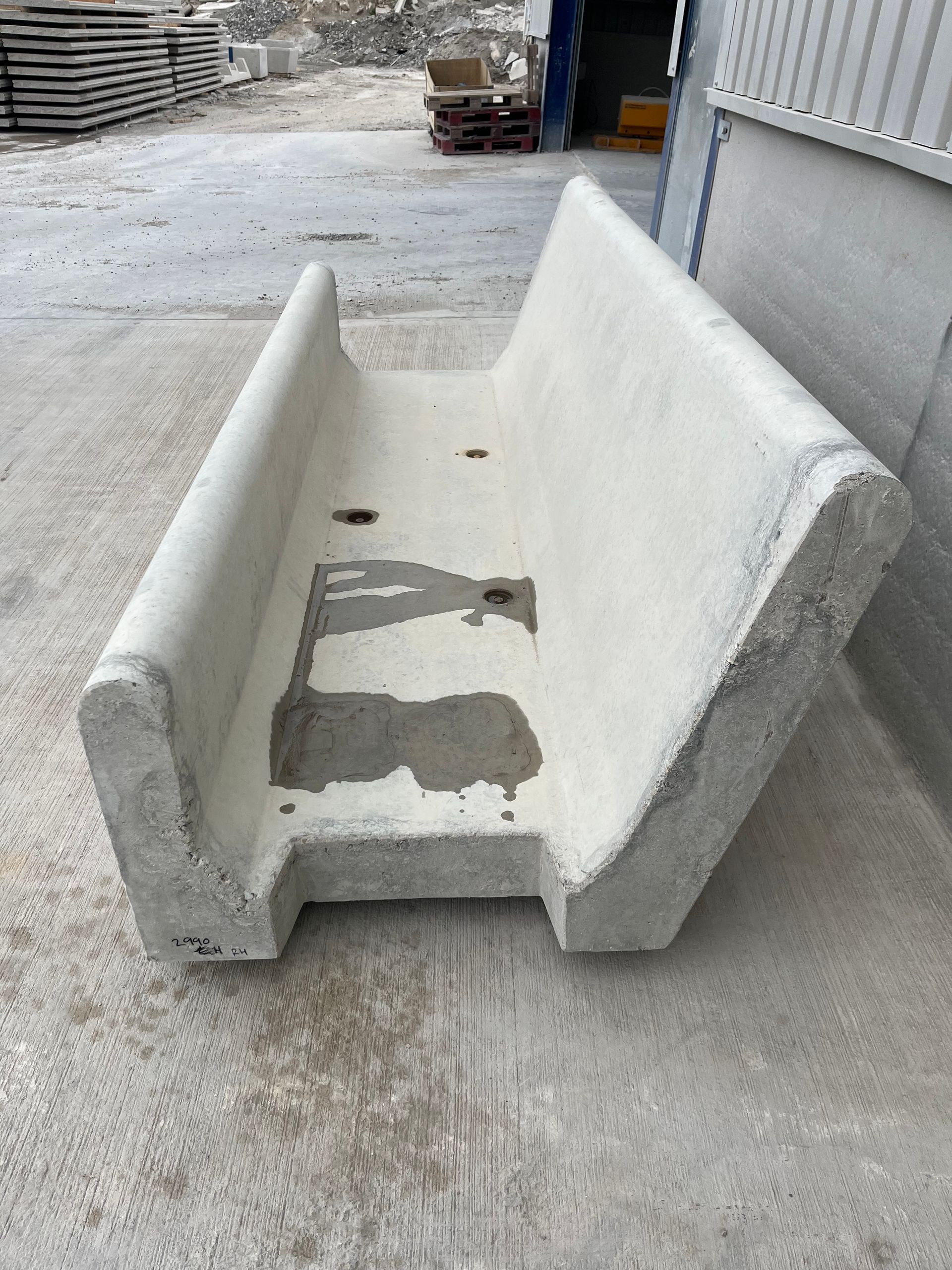

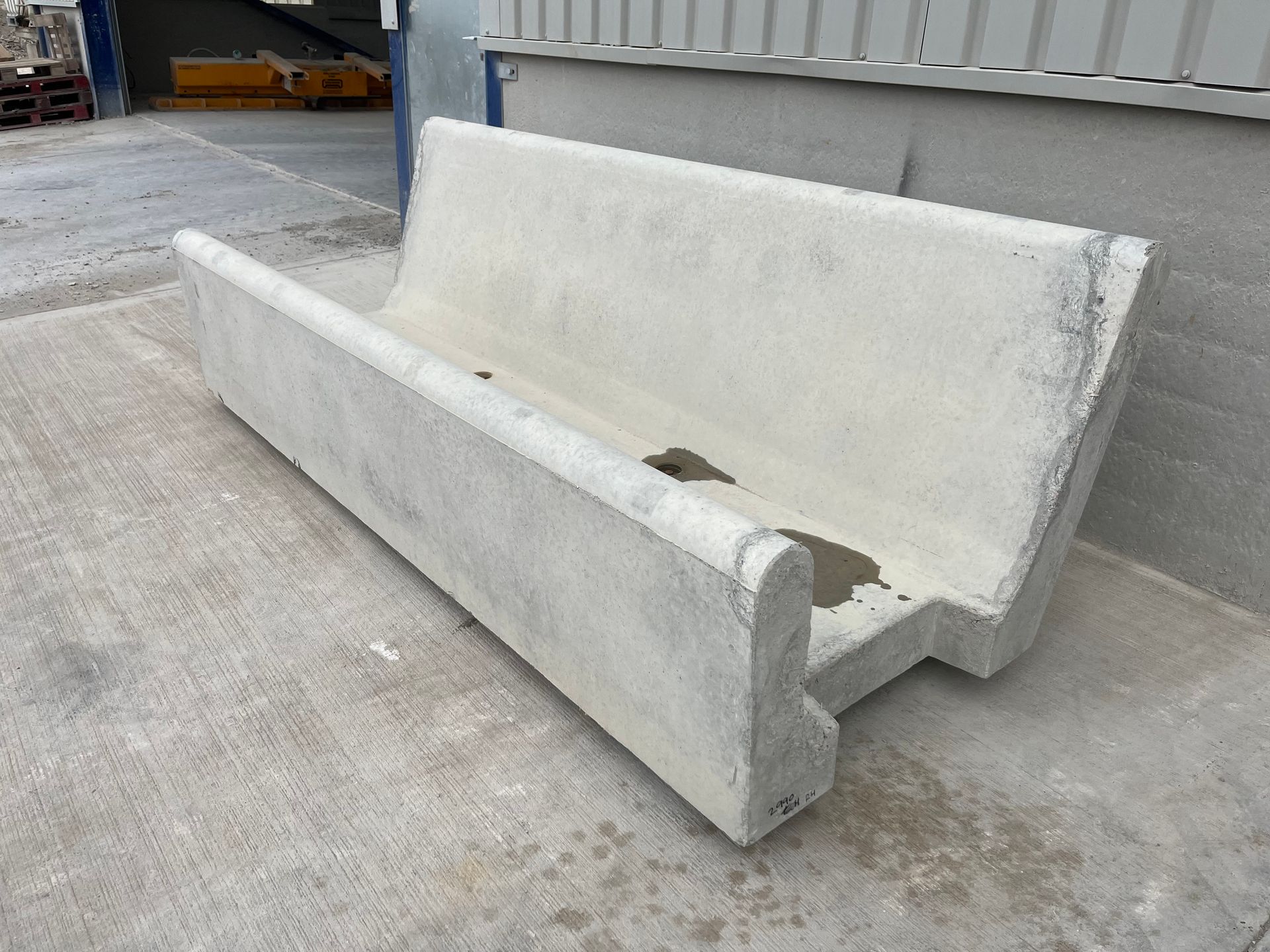

Feed Troughs:

Full Blocks:

1600mm (L) x 800mm (W) x 800mm (H)

Half Blocks:

800mm (L) x 800mm (W) x 800mm (H)

We also offer customisation options to meet your specific project needs. Contact us to discuss tailored solutions.

For projects requiring more permanent structures, explore our high-quality concrete panels, expertly crafted for building durable walls and storage facilities. Our team is ready to assist you in selecting the best products for your application.
